Cable - Cinch - Liftgate - Remove And Replace: Install

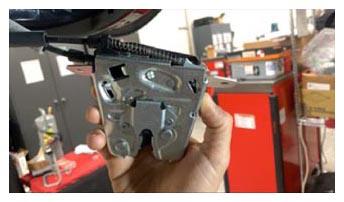

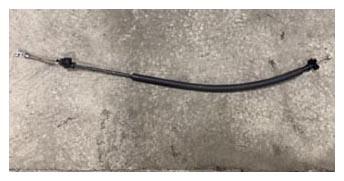

  1. Install new liftgate cinch cable onto the liftgate latch.
    G15391499Courtesy of TESLA, INC.
    G15391500Courtesy of TESLA, INC.

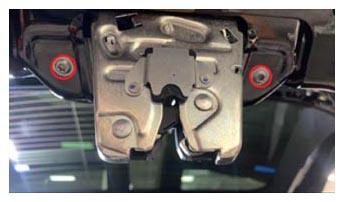

  2. Position the liftgate latch onto the liftgate, and then install the bolts (x2) that attach the liftgate latch to the liftgate.

    10 N.m (7.4 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • T30 socket
    G15391501Courtesy of TESLA, INC.

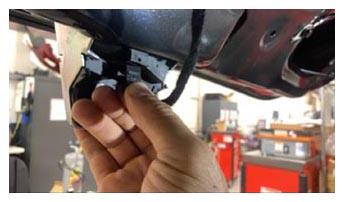

  3. Connect the liftgate latch electrical connector.
    G15391502Courtesy of TESLA, INC.
  4. Install the liftgate cinching actuator. See ACTUATOR - CINCHING - LIFTGATE (REMOVE AND REPLACE) .
