Power Distribution VCRight - 2/3 - Wiring Diagram (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

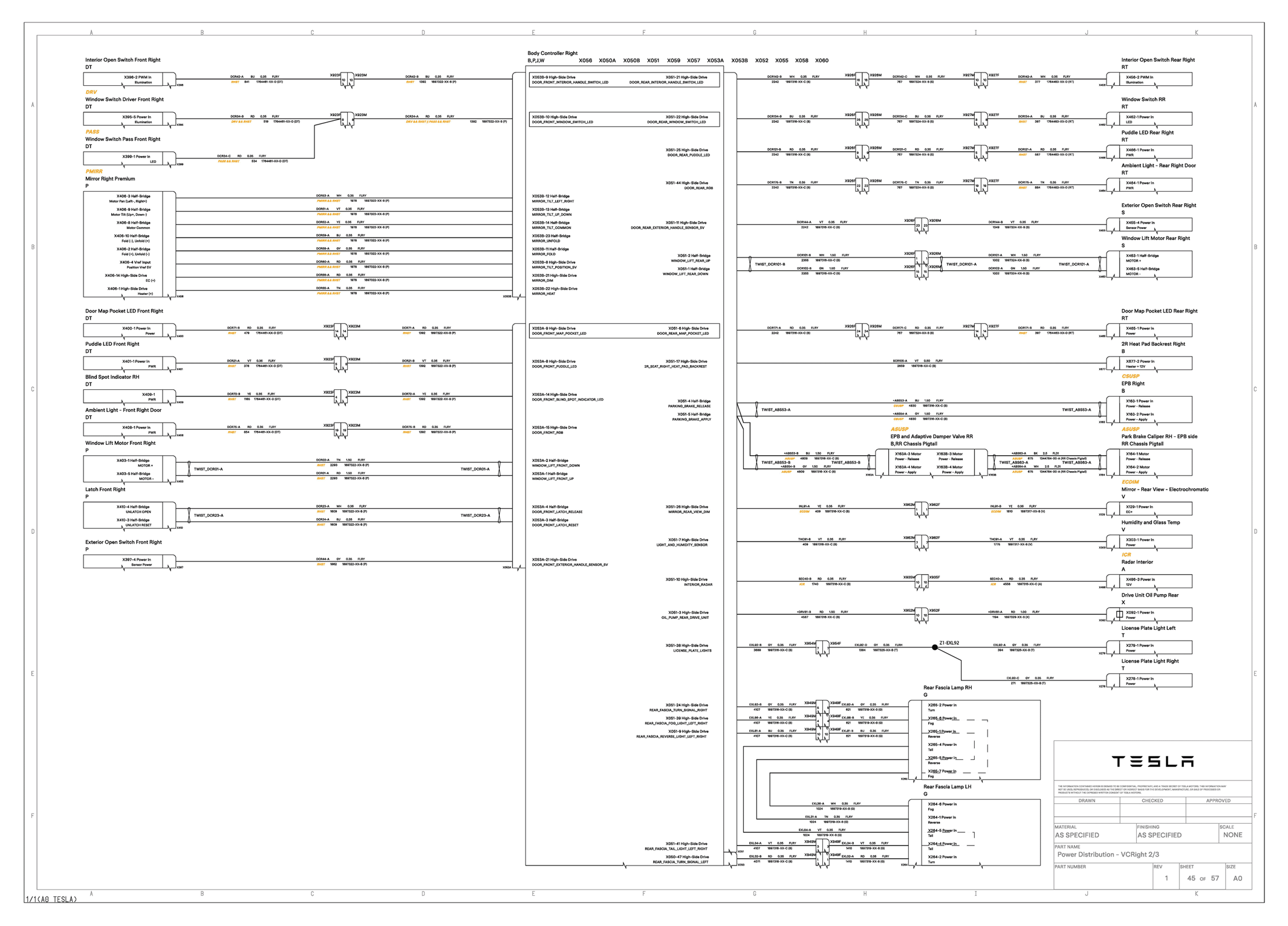

Fig 1: Power Distribution VCRight - 2/3 - Wiring Diagram (Fremont: 01/01/2024 - | Shanghai: 09/01/2023-)
G16612129Courtesy of TESLA, INC.
