Connector End View - X909M (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1097117-00-A

Connector DELPHI 33245685

Color WH

Connector Location:

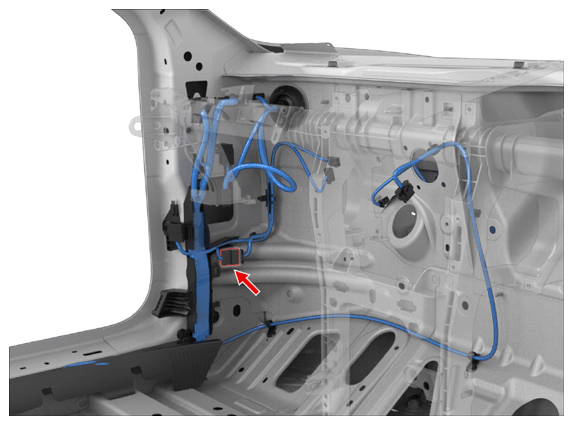

Fig 1: Connector Component Location - X909M (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

G16611315

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X909M (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

G16611316

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	unused
3	unused
4	unused
5	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X486	6
6	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X486	5
7	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35			X201	46
8	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X201	45
9	unused
10	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X201	8
11	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X201	7
12	unused
13	unused
14	unused
15	unused
16	SUMITOMO	8100-3623	0.64x0.64M	YE/LT BU	0.35			X031	29
17	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X031	30
18	unused
19	unused
20	unused
21	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X201	5
22	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X201	6
