Connector End View - X880 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number  1735551-03-A

Connector  ROSENBERGER AMK23A-102Z5-D

Color  BO

Connector Location:

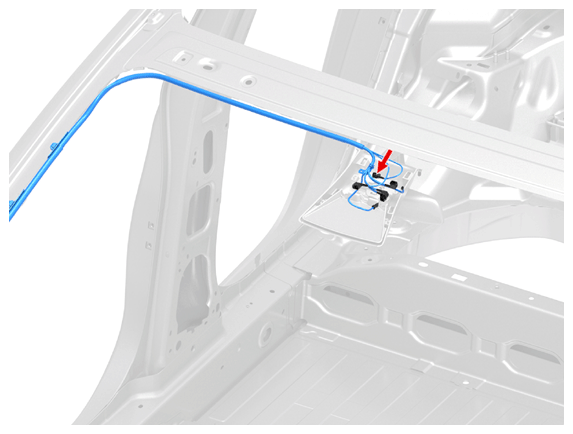

Fig 1: Connector Component Location - X880 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X880 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.
