Connector End View - X674 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1786951-00-A

Connector YAZAKI 7283-3443-60

Color GN

Connector Location:

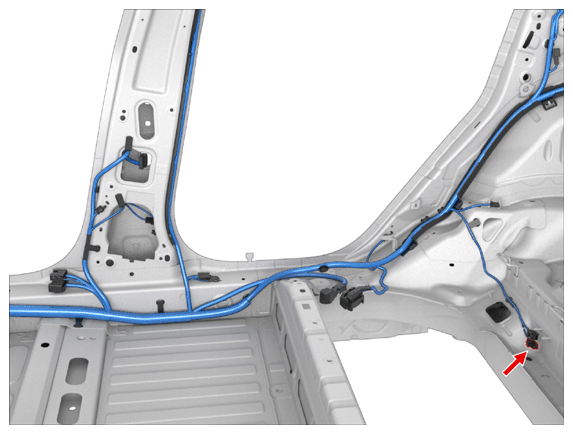

Fig 1: Connector Component Location - X674 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X674 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	YAZAKI	7116-4100-02	1.5x0.8F	WH	0.35	X051	40
2	YAZAKI	7116-4100-02	1.5x0.8F	BN	0.35	X050	14
3	YAZAKI	7116-4100-02	1.5x0.8F	BU	0.35	X935M	9
4	YAZAKI	7116-4100-02	1.5x0.8F	BN	0.35	X935M	25
