Connector End View - X617R (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1075246-00-A

Connector YAZAKI 7283-6449-40

Color GY

Connector Location:

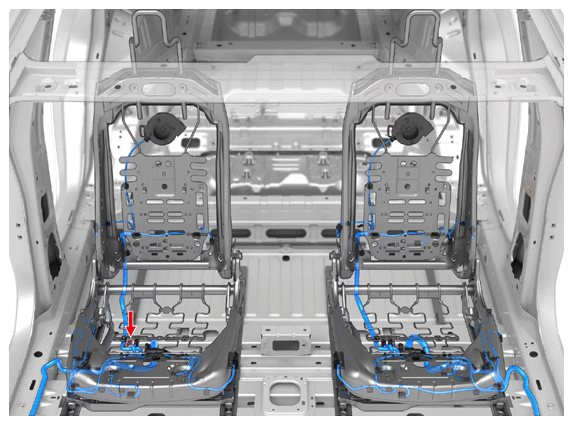

Fig 1: Connector Component Location - X617R (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X617R (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	YAZAKI	7116-6315-02	BN/WH	0.50	X052	35
2	YAZAKI	7116-6315-02	YE	0.50	X052	51
3	YAZAKI	7116-6315-02	GY	0.35	X052	17
4	YAZAKI	7116-6315-02	BN	0.35
