Connector End View - X560 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
Tesla Part Number 1042593-00-A
Connector SUMITOMO 6098-5713
Color WH

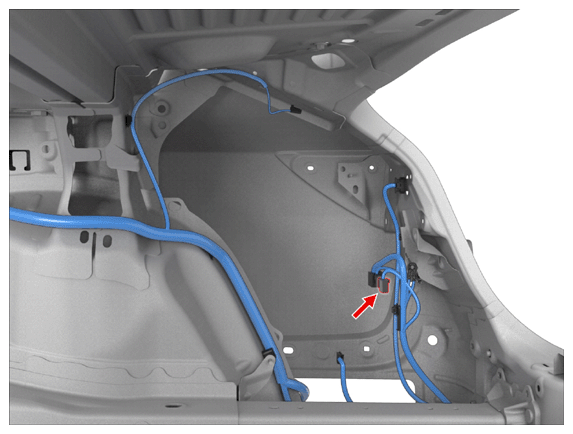

Connector Location:
Connector Pinout:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK | 0.50 | X936M | 15 | ||
| 2 | SUMITOMO | 8240-0215 | 1.5x0.64F | RD | 0.50 | X936M | 1 | ||
| 3 | SUMITOMO | 8240-0215 | 1.5x0.64F | RD/WH | 0.50 | X926F | 14 | ||
| 4 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK/WH | 0.50 | X926F | 26 | ||
| 5 | SUMITOMO | 8240-0215 | 1.5x0.64F | YE | 0.50 | X970M | 2 | ||
| 6 | SUMITOMO | 8240-0215 | 1.5x0.64F | GY | 0.50 | X970M | 1 | ||
| 7 | SUMITOMO | 8240-0214 | 1.5x0.64F | VT/WH | 2.00 | X051 | 36 | ||
| 8 | SUMITOMO | 8240-0214 | 1.5x0.64F | GN/WH | 2.00 | X051 | 20 | ||
| 9 | SUMITOMO | 8240-0215 | 1.5x0.64F | GN | 0.50 | X935M | 5 | ||
| 10 | SUMITOMO | 8240-0215 | 1.5x0.64F | VT | 0.50 | X935M | 6 | ||
| 11 | SUMITOMO | 8240-0215 | 1.5x0.64F | WH | 0.50 | X970M | 4 | ||
| 12 | SUMITOMO | 8240-0215 | 1.5x0.64F | VT | 0.50 | X970M | 3 |
