Connector End View - X494 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
Tesla Part Number 1768314-00-A
Connector AMPHENOL 10155504-A006LF
Color BK

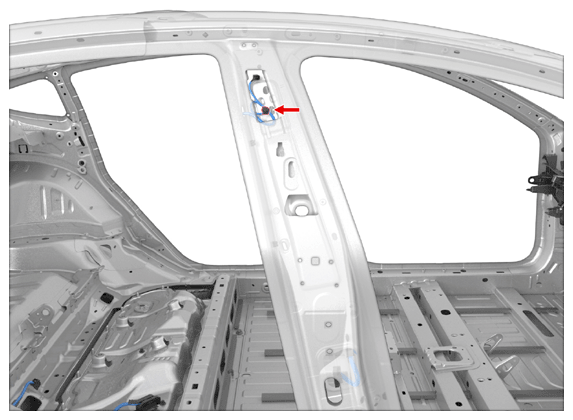

Connector Location:

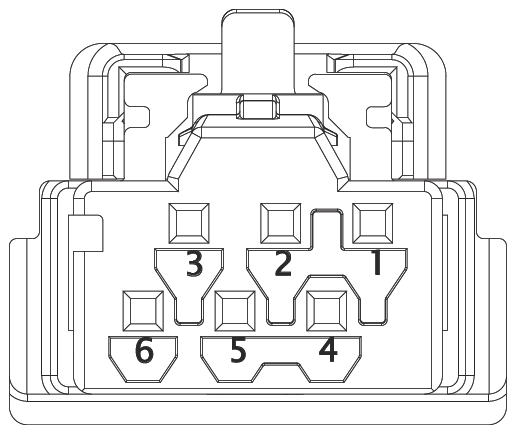

Connector Pinout:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMPHENOL | 10155447-111LF | 1.72x0.9F | RD | 0.35 | X051 | 45 | ||
| 2 | AMPHENOL | 10155447-111LF | 1.72x0.9F | YE | 0.35 | X050 | 20 | ||
| 3 | AMPHENOL | 10155447-111LF | 1.72x0.9F | GN | 0.35 | X935M | 22 | ||
| 4 | unused | ||||||||
| 5 | AMPHENOL | 10155447-111LF | 1.72x0.9F | BK | 0.35 | G032 | 14 | ||
| 6 | AMPHENOL | 10155447-111LF | 1.72x0.9F | BU | 0.35 | X935M | 21 | ||
