Connector End View - X482 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number  1096336-00-A

Connector  MOLEX 347910020

Color  BK

Connector Location:

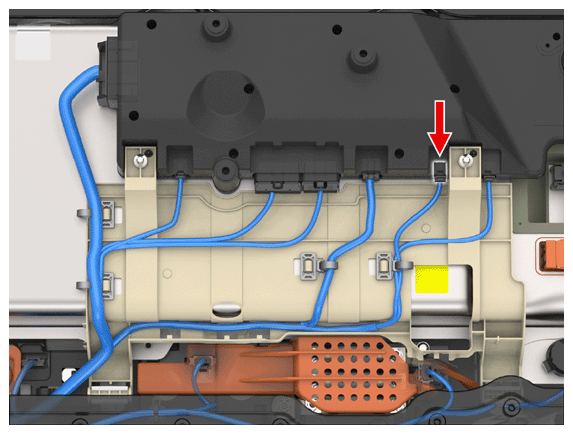

Fig 1: Connector Component Location - X482 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
G16610948Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X482 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
G16610949Courtesy of TESLA, INC.
CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 MOLEX 560023-0444 0.50x0.4F GN 0.13     X471 1
2 MOLEX 560023-0444 0.50x0.4F WH 0.13     X471 2
