Connector End View - X378 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1509529-00-A

Connector MOLEX 560123-0401

Color BK

Connector Location:

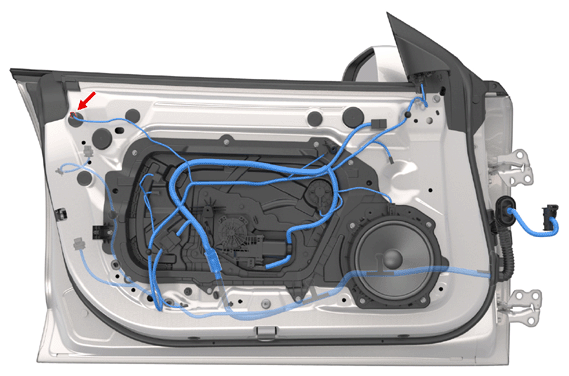

Fig 1: Connector Component Location - X378 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X378 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	560124-0101	0.5F	RD	0.35	X922F	19
2	unused
3	MOLEX	560124-0101	0.5F	GN	0.35	X922F	18
4	MOLEX	560124-0101	0.5F	BN	0.35
