Connector End View - X333 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
Tesla Part Number 1515032-00-A
Connector AMP 2141466-1
Color BK

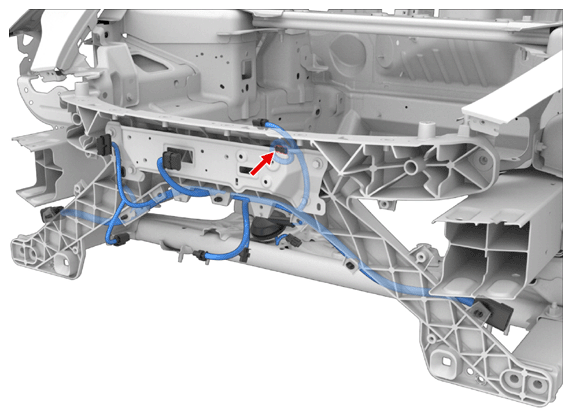

Connector Location:

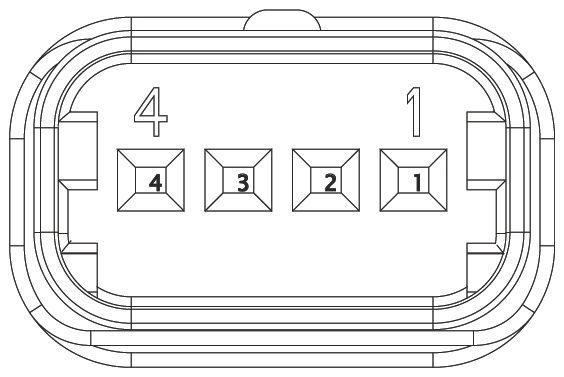

Connector Pinout:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 2-1703930-1 | 0.50x0.40F | VT | 0.35 | TESLA | MAT-110-130 | X906M | 13 |
| 2 | AMP | 2-1703930-1 | 0.50x0.40F | BN | 0.35 | TESLA | MAT-110-130 | X906M | 9 |
| 3 | AMP | 2-1703930-1 | 0.50x0.40F | GY | 0.35 | TESLA | MAT-110-130 | X906M | 7 |
| 4 | unused | ||||||||
