Connector End View - X303 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1622751-00-A

Connector MOLEX 5055700301

Color BK

Connector Location:

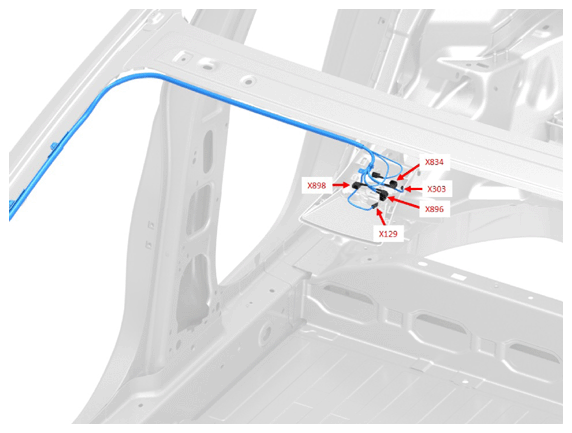

Fig 1: Connector Component Location - X303 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X303 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	5055721000	0.50x0.50F	VT	0.35	X962F	7
2	MOLEX	5055721000	0.50x0.50F	BN	0.35	X962F	9
3	MOLEX	5055721000	0.50x0.50F	GN	0.35	X962F	8
