Connector End View - X299 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1100844-00-A

Connector AMP 2141404-1

Color BK

Connector Location:

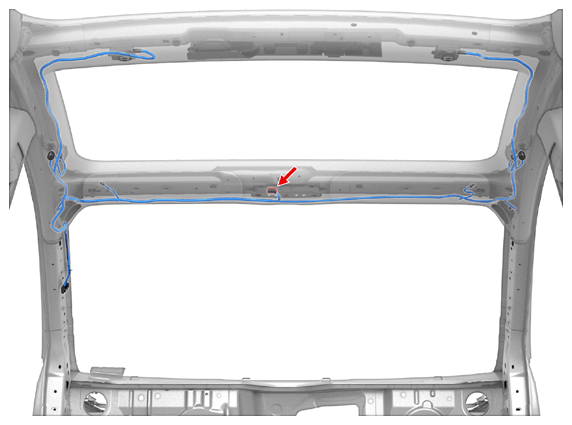

Fig 1: Connector Component Location - X299 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X299 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	33124945	0.50x0.40F	RD	0.35	X981F	13
2	unused
3	DELPHI	33124945	0.50x0.40F	YE	0.35	X290	1
4	DELPHI	33124945	0.50x0.40F	BU	0.35	X289	1
5	DELPHI	33124945	0.50x0.40F	GN	0.35	X287	2
6	DELPHI	33124945	0.50x0.40F	BN	0.35	X287	3
7	DELPHI	33124945	0.50x0.40F	YE/GN	0.35	X981F	8
8	DELPHI	33124945	0.50x0.40F	BN	0.35	X608	3
9	DELPHI	33124945	0.50x0.40F	GN	0.35	X286	2
10	DELPHI	33124945	0.50x0.40F	VT	0.35	X287	1
11	DELPHI	33124945	0.50x0.40F	RD	0.35	X286	1
12	DELPHI	33124945	0.50x0.40F	BN	0.35	X286	3
13	DELPHI	33124945	0.50x0.40F	BN	0.35	X981F	16
14	DELPHI	33124945	0.50x0.40F	BN	0.35	X290	2
15	DELPHI	33124945	0.50x0.40F	BN	0.35	X289	2
16	DELPHI	33124945	0.50x0.40F	BN	0.35	X609	3
17	unused
18	unused
19	unused
20	unused
