Connector End View - X289 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number  1015004-01-B

Connector  DELPHI 13649799

Color  WH

Connector Location:

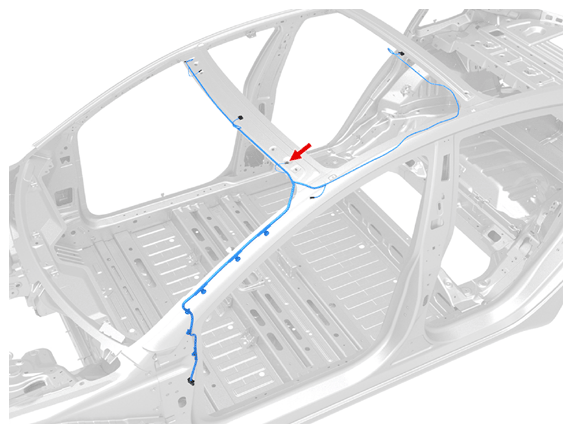

Fig 1: Connector Component Location - X289 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
G16610770Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X289 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
G16610771Courtesy of TESLA, INC.
CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 DELPHI 13580633 0.64x0.64F BU 0.35     X299 4
2 DELPHI 13580633 0.64x0.64F BN 0.35     X299 15
