Connector End View - X274 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number  1508585-00-A

Connector  MOLEX 5051510200

Color  BK

Connector Location:

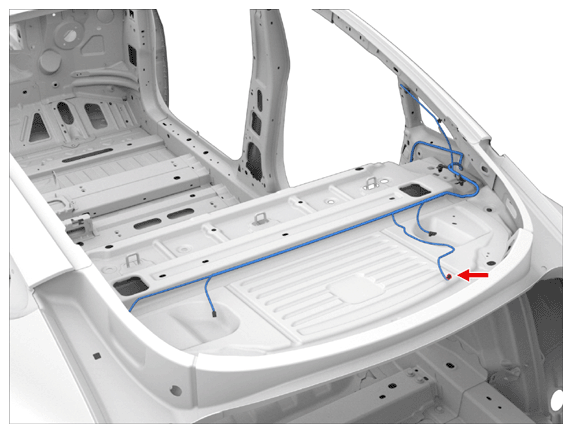

Fig 1: Connector Component Location - X274 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
G16610747Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X274 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
G16610748Courtesy of TESLA, INC.
CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 MOLEX 5051538000 0.5 BK 0.35     X970F 7
2 MOLEX 5051538000 0.5 BU 0.35     X970F 6
