Connector End View - X216 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1493986-00-B

Connector DELPHI 35263936

Color PK

Connector Location:

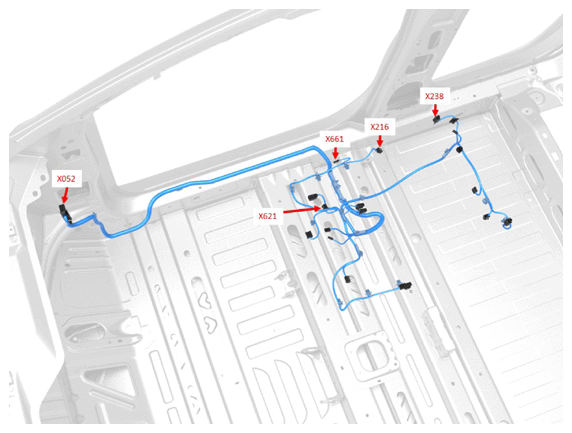

Fig 1: Connector Component Location - X216 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X216 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	GEN	PIA-SRS-S		GN/GY	0.35			X052	7
2	GEN	PIA-SRS-S		BU/YE	0.35			X052	8
