Connector End View - X195_1 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1507844-00-A

Connector MOLEX 560123-1200

Color WH

Connector Location:

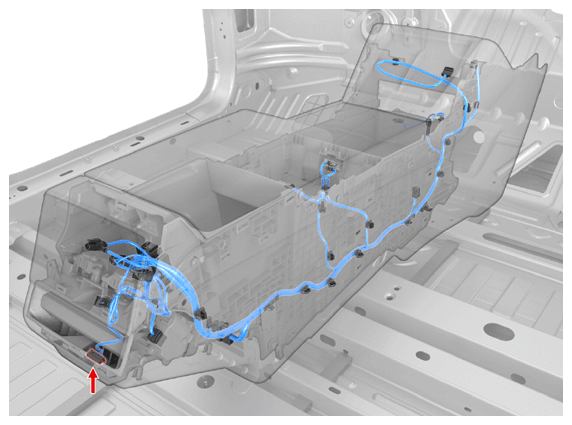

Fig 1: Connector Component Location - X195_1 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X195_1 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	560124-0101	0.5F	GY	0.35	X501_1	2
2	MOLEX	560124-0101	0.5F	BN	0.35	X501_1	3
3	MOLEX	560124-0101	0.5F	WH	0.35	X501_1	4
4	MOLEX	560124-0101	0.5F	BU	0.35	X501_1	5
5	MOLEX	560124-0101	0.5F	VT	0.35	X501_1	7
6	MOLEX	560124-0101	0.5F	YE	0.35	X501_1	6
7	MOLEX	560124-0101	0.5F	BU	0.35	X501_1	11
8	MOLEX	560124-0101	0.5F	GY	0.35	X501_1	10
9	MOLEX	560124-0101	0.5F	VT	0.35	X501_1	9
10	MOLEX	560124-0101	0.5F	WH	0.35	X501_1	8
11	MOLEX	560124-0101	0.5F	BN	0.35	X501_1	12
12	MOLEX	560124-0101	0.5F	RD	0.35	X501_1	13
