Side Shield - Inboard - Driver Seat - Remove and Replace: Remove

  1. Open the LH front door.
  2. Move the driver seat to the rearmost and lowest position.
  3. Open the rear RH door.
  4. Remove the inboard side shield:

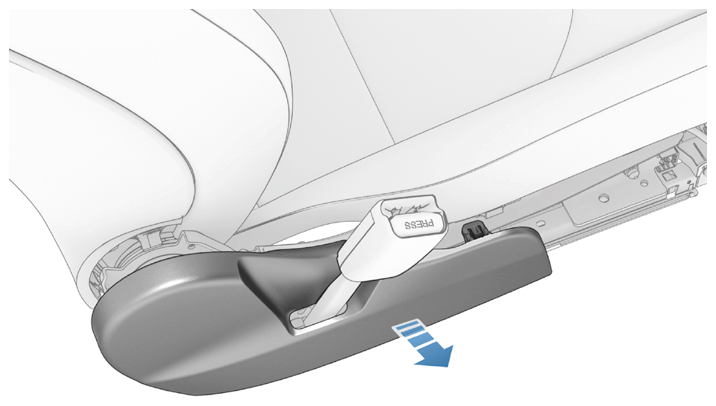

    1. Release the front clip that attaches the inboard side shield to the seat inner seat rail.
      G14740371Courtesy of TESLA, INC.

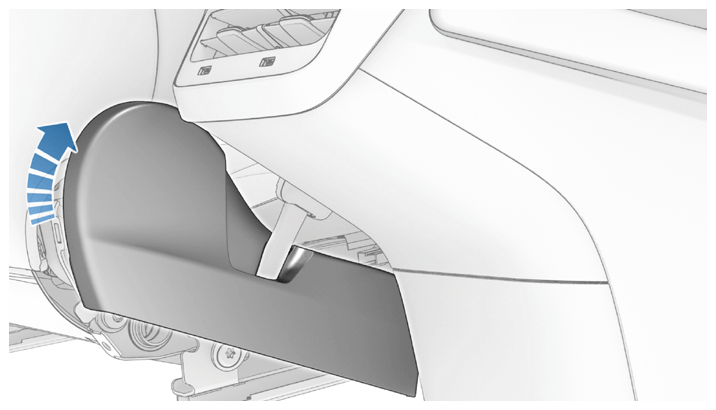

    2. Release the rear portion of the inboard side shield from the inner seat rail, and then rotate the side shield upwards.
      G14740372Courtesy of TESLA, INC.

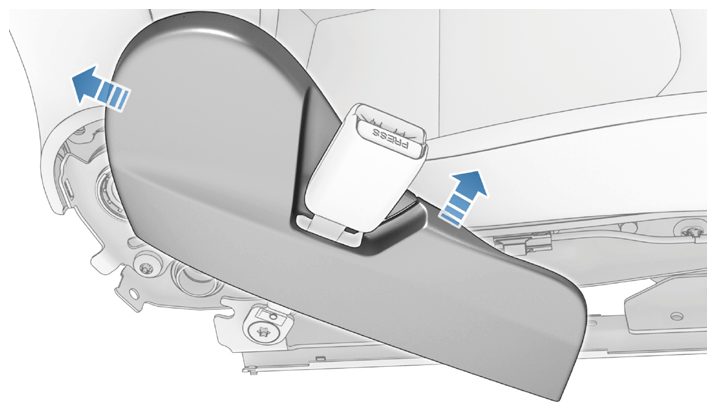

    3. Pass the buckle out through the slot on the inboard side shield, and then remove the inboard side shield from the vehicle.
      G14740373Courtesy of TESLA, INC.
