Solenoid - Glove Box - Remove and Replace: Remove

  1. Remove the glove box. See GLOVE BOX - WITH KNEE AIRBAGS (REMOVE AND REPLACE) .

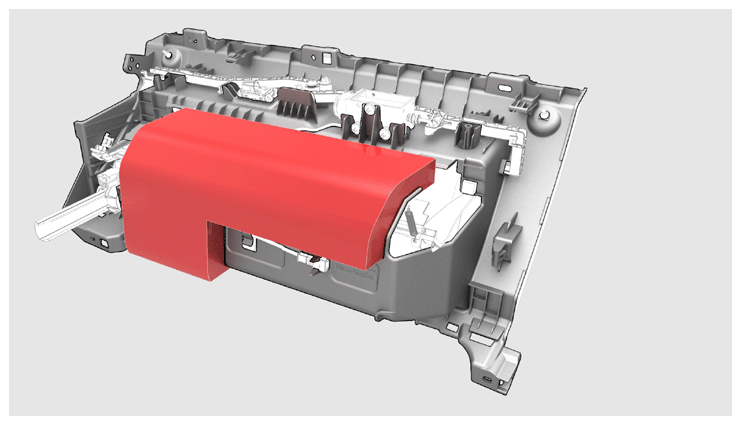

  2. Remove and discard the NVH pad from the glove box.
    NOTE: The NVH pad is one time use only.
    G14740736Courtesy of TESLA, INC.

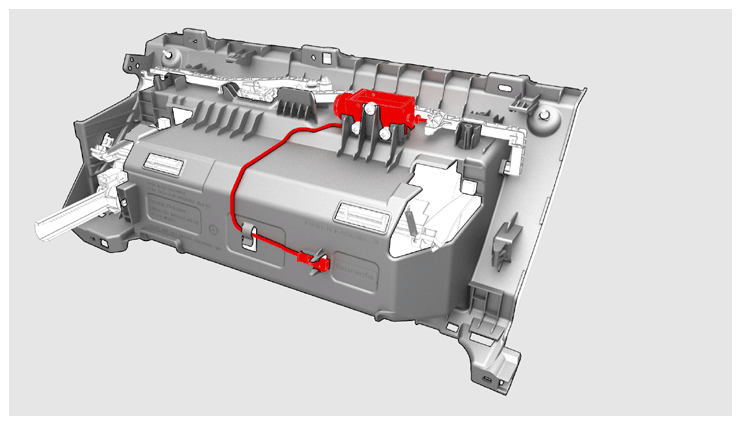

  3. Release the clips that attach the glove box solenoid electrical harness to the glove box.
    G14740737Courtesy of TESLA, INC.

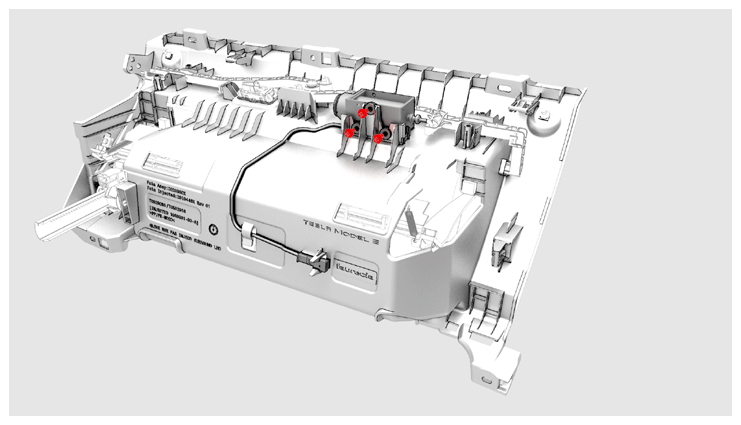

  4. Remove the bolts that attach the glove box solenoid to the glove box, and then remove the solenoid from the glove box.

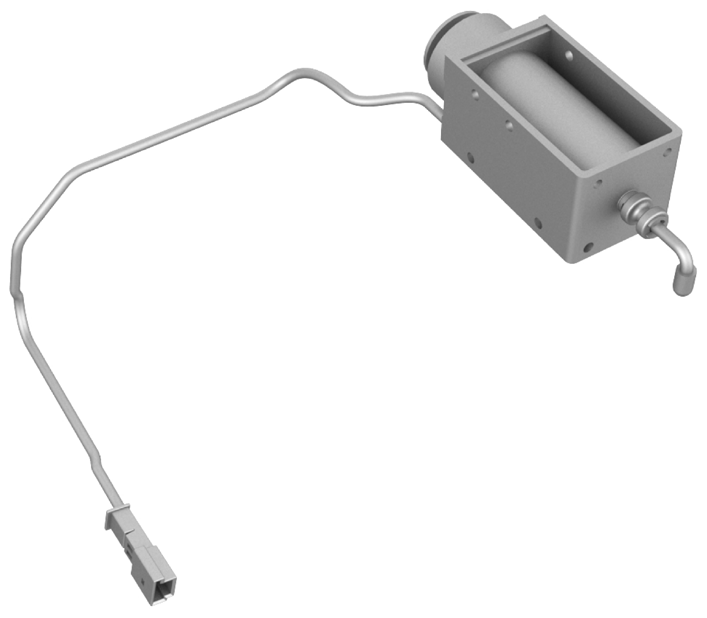

    NOTE: The solenoid plunger has a right angle bend into the link rod.
    G14740738Courtesy of TESLA, INC.
    G14740739Courtesy of TESLA, INC.
