Shroud - Upper - Steering Column - Remove and Replace: Remove
- Remove the steering wheel. See STEERING WHEEL (REMOVE AND INSTALL)
.

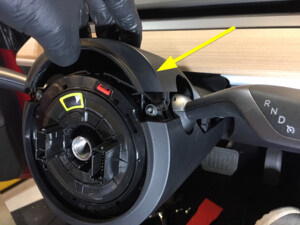

- Pull the steering column upper shroud upward to release the clips that attach it to the steering column lower shroud.
 Courtesy of TESLA, INC.
|

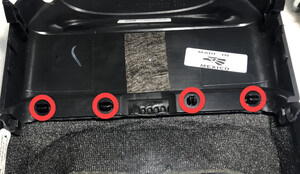

- Remove the clips that attach the steering column upper gap hider to the steering column.
 Courtesy of TESLA, INC.
|
- Remove the steering column upper shroud from the instrument panel.
 Courtesy of TESLA, INC.
|
- Release the clips that attach the steering column upper gap hider to the steering column shroud.
 Courtesy of TESLA, INC.
|
