Crush Can - Front Subframe - LH - Remove and Replace: Remove
- Remove the front end carrier. See CARRIER - FRONT END (REMOVE AND REPLACE) .

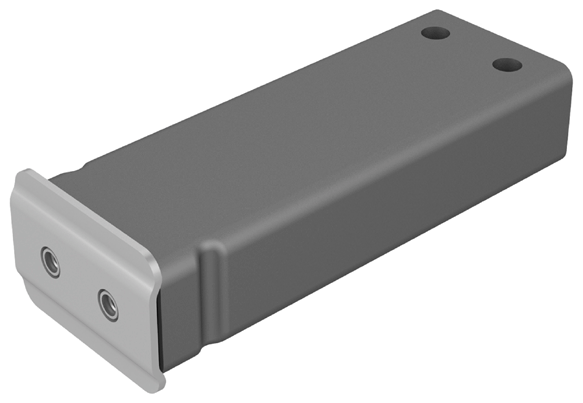

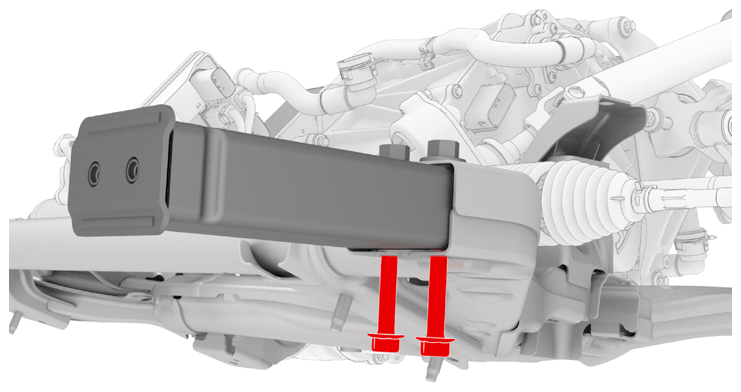

- Remove the bolts that attach the LH crash can bracket to the front subframe, and remove the bracket from the subframe.
53 N.m (39.1 ft-lbs)
