Speaker - Headliner - LH - Remove and Replace: Remove

  1. Remove the headliner from the vehicle. See HEADLINER (HEAT PUMP) (REMOVE AND INSTALL) .

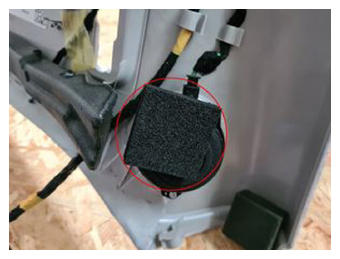

  2. Remove the soundproof foam from the LH front headliner speaker.
    G14748456Courtesy of TESLA, INC.

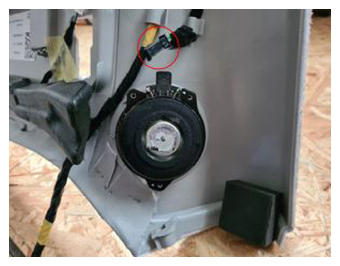

  3. Disconnect the LH front headliner speaker electrical connector.
    G14748457Courtesy of TESLA, INC.

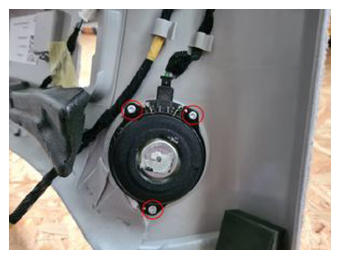

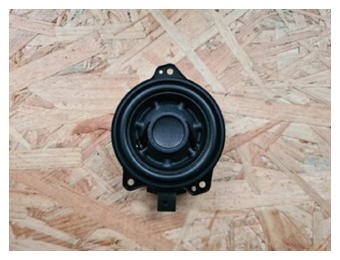

  4. Remove the screws that attach the LH front headliner speaker to the headliner assembly.

    0.5 N.m (4 in-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T10 driver
    G14748458Courtesy of TESLA, INC.
    G14748459Courtesy of TESLA, INC.
