Visor - Car Computer (Info-Ryzen) - Remove and Replace: Install

  1. Install visor on computer
    NOTE: 4x clips, Align coolant pipe clips over coolant pipes and lower visor until all clips are secured.
    G14748377Courtesy of TESLA, INC.
    G14748378Courtesy of TESLA, INC.
    G14748379Courtesy of TESLA, INC.
  2. Lift computer into position on bulkhead
    NOTE: With right hand on top of computer and left hand under computer, use right hand to help push airbag up and towards the rear of the vehicle to provide clearance for visor.
    G14748380Courtesy of TESLA, INC.
  3. Install nuts securing car computer to the bulkhead
    NOTE: 6x nyloc nuts, 13 mm, 7.1 N.m (5.23 ft-lbs.). Install new nyloc nuts
    G14748381Courtesy of TESLA, INC.
  4. Remove plugs from hoses
    NOTE: 2x plugs, Engage spring clips after removal
    G14748382Courtesy of TESLA, INC.
  5. Remove coolant plugs from car computer
    NOTE: 2x plugs
    G14748383Courtesy of TESLA, INC.
  6. Install coolant hoses to car computer
    NOTE: 2x hose connectors. Ensure clips seated properly in car computer detents.
    G14748384Courtesy of TESLA, INC.
  7. Remove coolant bottle cap
    G14748385Courtesy of TESLA, INC.
  8. Fill coolant bottle to base of neck as indicated
    G14748386Courtesy of TESLA, INC.
  9. Remove absorbent material from below car computer coolant hose connection points
    G14748387Courtesy of TESLA, INC.
  10. Remove absorbent material from beneath car computer
    G14748388Courtesy of TESLA, INC.
  11. Secure airbag to cross car beam.
    NOTE: 4x patch bolts, T30, 8 N.m (5.9 ft-lbs), Newer vehicles have 4x E10 patch bolts,
    G14748389Courtesy of TESLA, INC.
  12. Connect connectors for passenger air bag assembly
    NOTE: 3x connectors, 2x connectors for regions other than North America, Connector release may vary
    G14748390Courtesy of TESLA, INC.
  13. Install the RH carpet locator bracket into vehicle
    G14748391Courtesy of TESLA, INC.
  14. Install the nuts securing RH carpet locator bracket
    NOTE: 2x nuts, 10 mm, 2.5 N.m (1.84 ft-lbs.). Newer vehicles may use clips instead of nuts
    G14748392Courtesy of TESLA, INC.
  15. Fold the RH front main cabin carpet back to original position
    NOTE: Move front edge down and slide back section up to ease positioning, Install seat harness into clips
    G14748393Courtesy of TESLA, INC.
    G14748394Courtesy of TESLA, INC.
  16. Install clips securing passenger side of cabin main carpet to footwell area
    NOTE: 3x push clips
    G14748395Courtesy of TESLA, INC.
  17. Install the RH IP air wave duct
    NOTE: 2x push clips
    G14748396Courtesy of TESLA, INC.
  18. Install the passenger footwell air duct
    NOTE: 1x push clip
    G14748397Courtesy of TESLA, INC.
  19. Connect glove box assembly connectors
    NOTE: 3x connectors, New puddle lamp harness routing prevent blocking movement of pawls, Make sure harness is routed properly above passenger footwell air duct before connecting
    G14748398Courtesy of TESLA, INC.
    G14748399Courtesy of TESLA, INC.
    G14748400Courtesy of TESLA, INC.
    G14748401Courtesy of TESLA, INC.
  20. Install the glove box into IP carrier
    NOTE: 3x clips
    G14748402Courtesy of TESLA, INC.
  21. Install screws securing glove box assembly to IP carrier
    NOTE: 6x screws, T20, 2.3 N.m (1.69 ft-lbs.)
    G14748403Courtesy of TESLA, INC.
    G14748404Courtesy of TESLA, INC.
    G14748405Courtesy of TESLA, INC.
  22. Install main decor assembly
    NOTE: 15x clips, 1x center clip
    G14748406Courtesy of TESLA, INC.
    G14748407Courtesy of TESLA, INC.
  23. Install the passenger knee air bag into vehicle
    NOTE: 1x connector, Use caution not to damage the connector/harness, Support the knee air bag while connecting the connector
    G14748408Courtesy of TESLA, INC.
    G14748409Courtesy of TESLA, INC.
  24. Install fasteners securing passenger knee air bag to vehicle
    NOTE: 4x patch bolts, E10, 8 N.m (5.9 ft-lbs), Install new patch bolts, 2x screws, T20, 2 N.m (1.47 ft-lbs.), 1x push clip. If vehicle equipped with T30 bolts, update to E10
    G14748410Courtesy of TESLA, INC.
    G14748411Courtesy of TESLA, INC.
    G14748412Courtesy of TESLA, INC.
  25. Install clips securing RH footwell assembly
    NOTE: 4x push clips
    G14748413Courtesy of TESLA, INC.
  26. Install RH lower A-pillar trim
    NOTE: 1x clip, 2 guide tabs, Align the 2 front tabs then align the slot with harness bracket and then push rear clip to secure to lower B-pillar
    G14748414Courtesy of TESLA, INC.
    G14748415Courtesy of TESLA, INC.
  27. Install clip for RH lower A-pillar trim
    NOTE: 1x push clip
    G14748416Courtesy of TESLA, INC.
  28. Install RH mid A-pillar assembly
    NOTE: 1x clip, 1x tab, Align the bottom tab then push the top clip to fully seat mid A-pillar, Make sure the seal seat on top of the trim
    G14748417Courtesy of TESLA, INC.
  29. Install RH IP end cap
    NOTE: 3x clips
    G14748418Courtesy of TESLA, INC.
    G14748419Courtesy of TESLA, INC.
  30. Reconnect service disconnect
    NOTE: 1x connector secure locking tab
    G14748420Courtesy of TESLA, INC.
  31. Connect LV battery connector
    NOTE: Push connector down while pushing slide lock in, Seat e-CPA after lock is fully secured
    G14748421Courtesy of TESLA, INC.
    G14748422Courtesy of TESLA, INC.
  32. Place vehicle in service mode through UI
    NOTE: Select vehicle's badge icon in Controls > Software for four seconds and then type "service" into dialog box
    G14748423Courtesy of TESLA, INC.
    G14748424Courtesy of TESLA, INC.
    G14748425Courtesy of TESLA, INC.
  33. Access thermal system routines using the UI
    NOTE: Select quick controls > Service mode > Diagnostics > Thermal, Authorize routines by holding right turn signal, depressing brake pedal for 10 seconds with key in vehicle
    G14748426Courtesy of TESLA, INC.
    G14748427Courtesy of TESLA, INC.

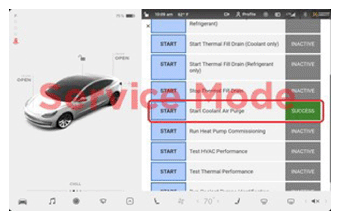

  34. Select 'Start' button at 'Start Coolant Air Purge' using the UI and 'TEST-VCFRONT-X-THERMAL-COOLANT-AIR-PURGE - SUCCESS' window will appear
    NOTE: Coolant pumps will be audible, Test lasts approximately 10 mins, Putting vehicle into drive state will stop this routine, Monitor levels as required, Select 'X' at top left of window to close once complete
    G14748428Courtesy of TESLA, INC.
    G14748429Courtesy of TESLA, INC.
  35. Inspect coolant level and top off as necessary
    NOTE: Ensure that the fluid level is at the Max line
    G14748430Courtesy of TESLA, INC.
  36. Install coolant bottle cap
    G14748431Courtesy of TESLA, INC.
  37. Exit Service Mode through UI
    NOTE: Exit Service Mode: Controls > Service Mode > Exit Service Mode
    G14748432Courtesy of TESLA, INC.
  38. Install frunk assembly to vehicle
    NOTE: 12x clips, Make sure frunk assembly is fully seated onto the clips, Number of clips may vary on older vehicles
    G14748433Courtesy of TESLA, INC.
    G14748434Courtesy of TESLA, INC.
  39. Install fasteners securing the frunk assembly
    NOTE: 7x bolts, 10 mm, 5 N.m (3.68 ft-lbs.). Lower the RBN covers after installing upper fasteners. Newer vehicles may not be equipped with covers
    G14748435Courtesy of TESLA, INC.
  40. Install frunk assembly carpet
    G14748436Courtesy of TESLA, INC.
  41. Install frunk close out panel
    NOTE: 4x clips, 1x connector, Frunk safety switch, 3x guide tabs, Align the 3x tabs then push downward to secure clips
    G14748437Courtesy of TESLA, INC.
  42. Press and hold park button to release EPB service mode
    NOTE: Remove wheel chocks if necessary
    G14748438Courtesy of TESLA, INC.
    G14748439Courtesy of TESLA, INC.
  43. Install cabin intake upper duct assembly
    NOTE: 3x clips, Older vehicles may be equipped with 4x clips
    G14748440Courtesy of TESLA, INC.
  44. Install rear apron
    NOTE: 12x clips, If present untuck cut loop label and make sure it is still visible after apron is installed, Later builds may not have label
    G14748441Courtesy of TESLA, INC.
    G14748442Courtesy of TESLA, INC.
  45. Close hood
  46. Raise all the windows
  47. Close all four doors
    NOTE: Unlatch rear doors before closing
