Speaker - Headliner - LH - Remove and Replace: Install

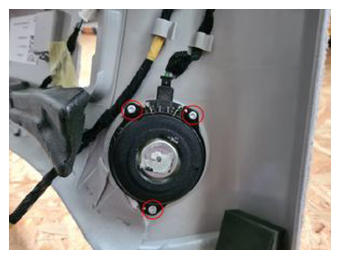

  1. Position the LH front headliner speaker onto the headliner assembly, and then install the screws that attach the speaker to the headliner assembly.

    0.5 N.m (4 in-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T10 driver
    G14748460Courtesy of TESLA, INC.
  2. Connect the LH front headliner speaker electrical connector.
    G14748461Courtesy of TESLA, INC.
  3. Install the soundproof foam to the LH front headliner speaker.
    G14748462Courtesy of TESLA, INC.
  4. Install the headliner from the vehicle. See HEADLINER (HEAT PUMP) (REMOVE AND INSTALL) .
