Taillight - LH - Remove and Replace: Remove

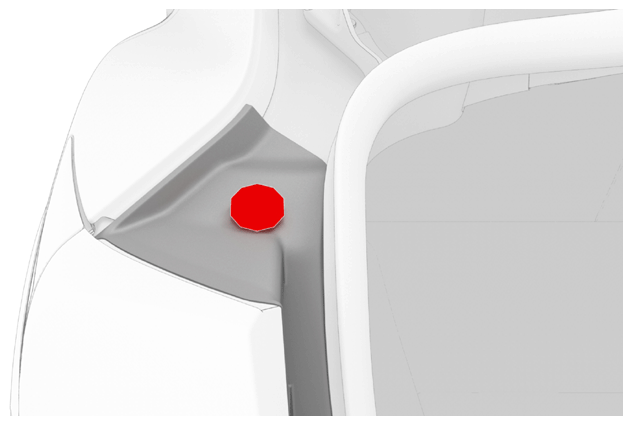

  1. Open the trunk, and then use the bump stop removal tool to remove the LH trunk stop.
    CAUTION: Do not use other tools to pry at the trunk stop as this could damage the taillight or trunk stop.
    G14744328Courtesy of TESLA, INC.
  2. Remove the trunk garnish. See GARNISH - TRUNK (REMOVE AND REPLACE) .

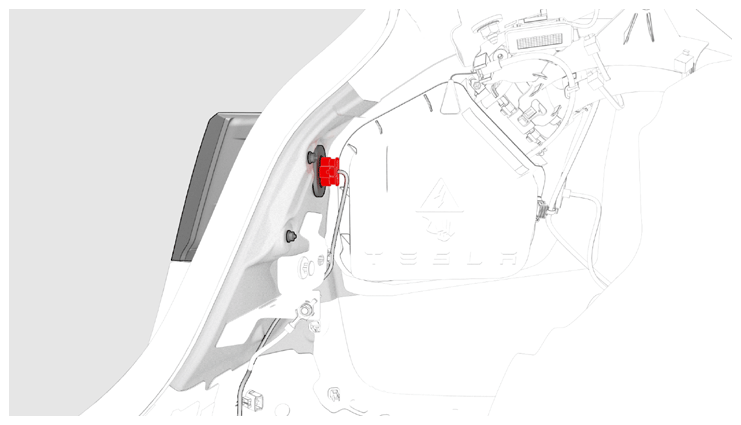

  3. Carefully pull back the trunk trim carpet to expose the taillight, and then disconnect the electrical harness from the taillight connector.
    CAUTION: If the connector has a red locking tab: DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.
    G14744329Courtesy of TESLA, INC.

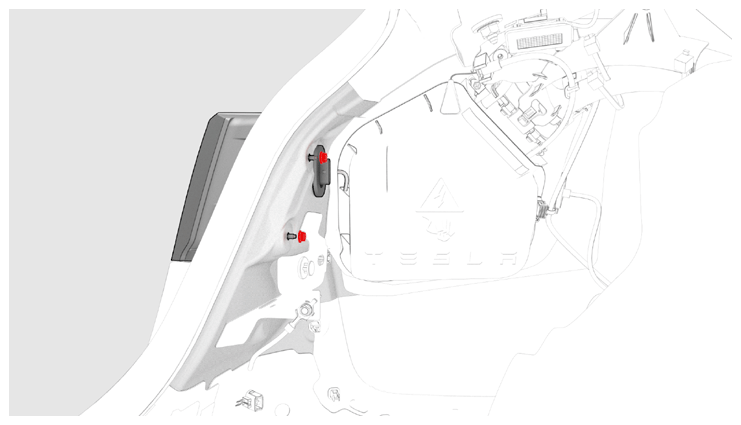

  4. Remove the nuts (x2) that attach the taillight to the body.

    Tip: Use of the following tool(s) is recommended:

    • 8 mm 12-point deep socket
    • 1/4 in std ratchet
    • 1/4 in torque wrench (installation only)
    G14744330Courtesy of TESLA, INC.

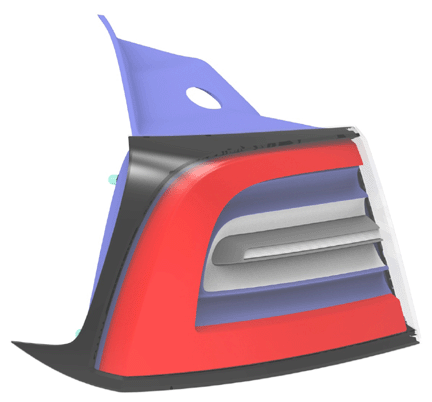

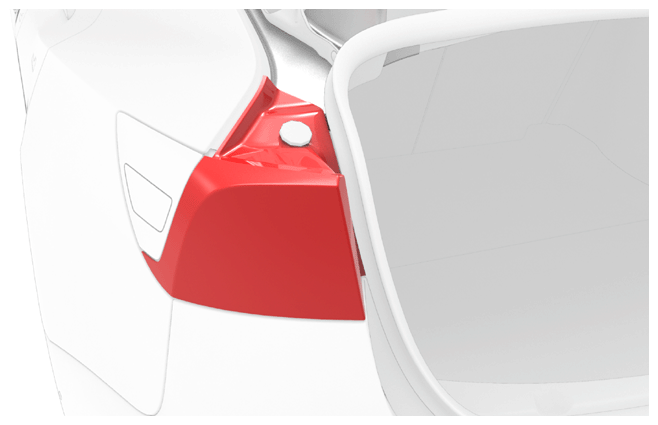

  5. Remove the LH taillight assembly from the vehicle.
    G14744331Courtesy of TESLA, INC.

    Tip: Lift the trunk seal for better clearance.

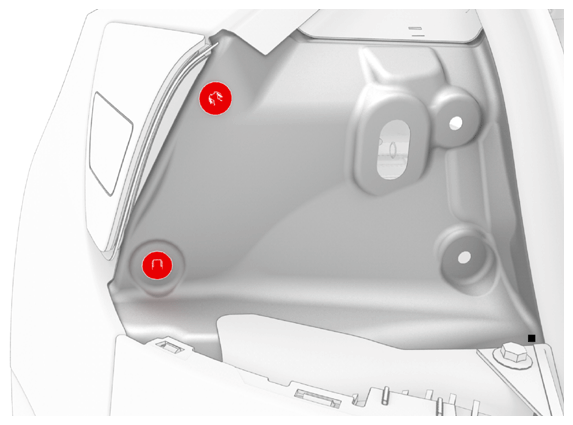

  6. Remove and discard the grommets (x2) from the body.
    G14744332Courtesy of TESLA, INC.
    G14744333Courtesy of TESLA, INC.
