Power Distribution VCFront - 1/2 - Wiring Diagram (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

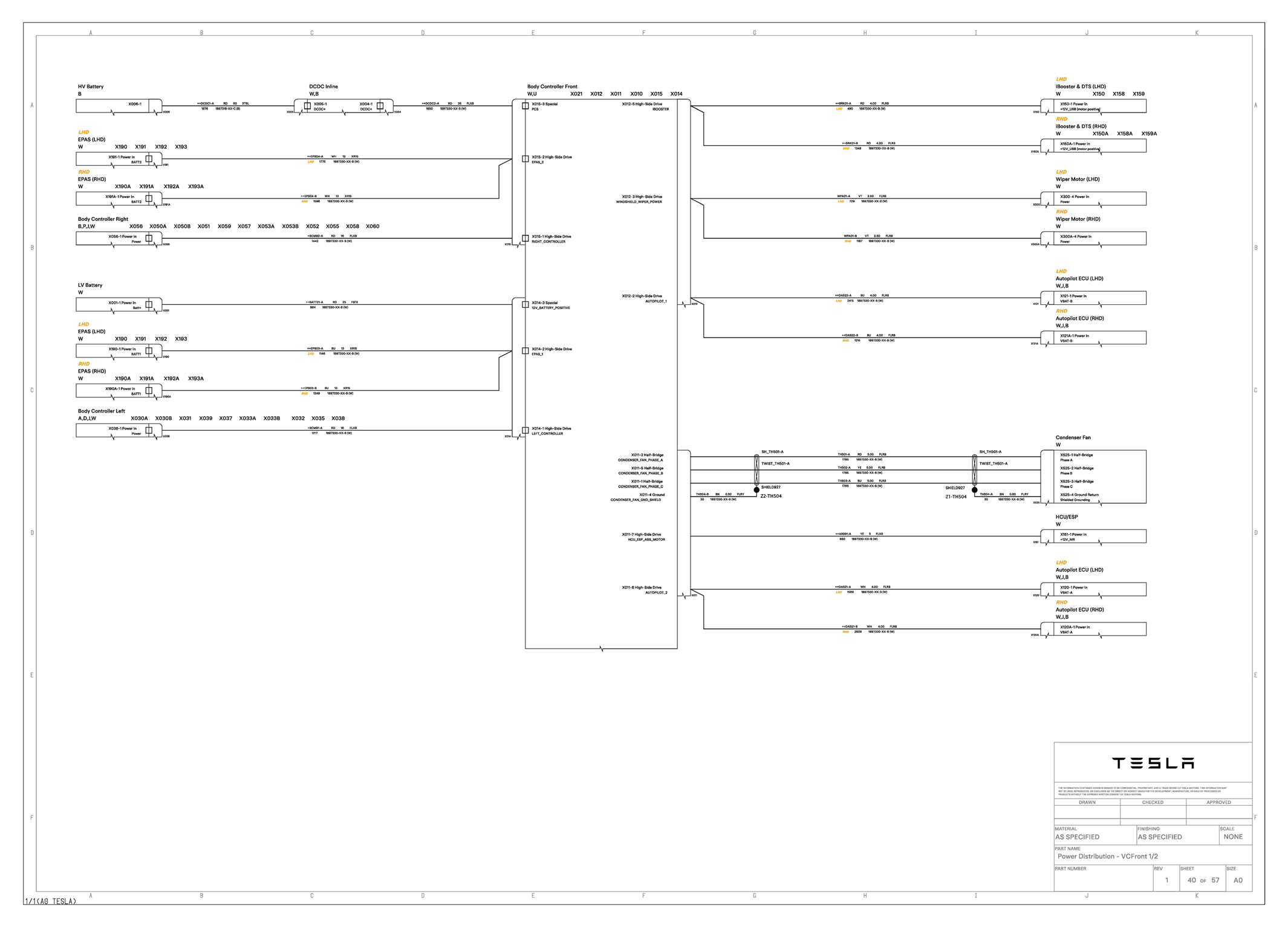

Fig 1: Power Distribution VCFront - 1/2 - Wiring Diagram (Fremont: 01/01/2024 - | Shanghai: 09/01/2023-)
G16612124Courtesy of TESLA, INC.
