Connector End View - X991F (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
Tesla Part Number 1778336-00-A
Connector DELPHI 13857844
Color BK

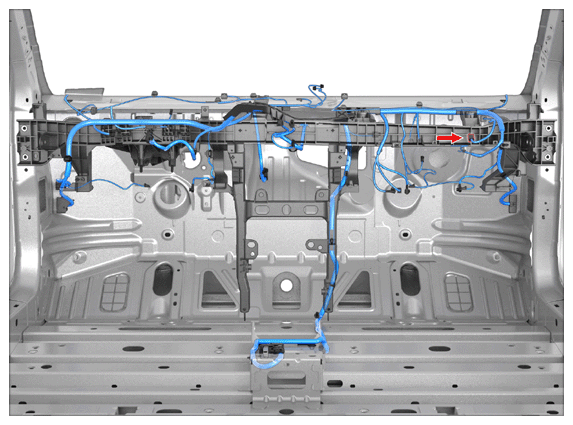

Connector Location:

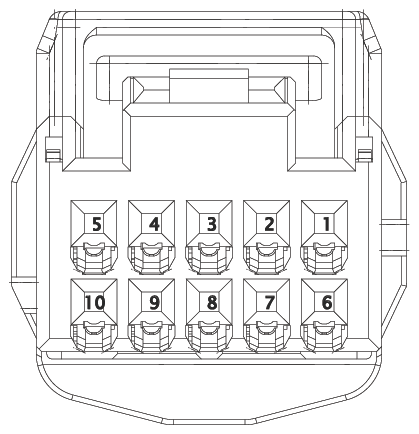

Connector Pinout:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8100-3625 | 0.64x0.64F | YE/BU | 0.35 | X558 | 3 | ||
| 2 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD | 0.35 | X545 | 4 | ||
| 3 | SUMITOMO | 8100-3625 | 0.64x0.64F | WH/RD | 0.35 | X558 | 5 | ||
| 4 | SUMITOMO | 8100-3625 | 0.64x0.64F | BU | 0.35 | X545 | 6 | ||
| 5 | SUMITOMO | 8100-3625 | 0.64x0.64F | YE | 0.35 | X545 | 7 | ||
| 6 | SUMITOMO | 8100-3625 | 0.64x0.64F | BK | 0.35 | X558 | 7 | ||
| 7 | SUMITOMO | 8100-3625 | 0.64x0.64F | BU | 0.35 | X558 | 6 | ||
| 8 | SUMITOMO | 8100-3625 | 0.64x0.64F | WH | 0.35 | X545 | 5 | ||
| 9 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD | 0.35 | X558 | 4 | ||
| 10 | SUMITOMO | 8100-3625 | 0.64x0.64F | YE/GN | 0.35 | X545 | 3 |
