Connector End View - X990M (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1042579-00-A

Connector SUMITOMO 6098-3877

Color WH

Connector Location:

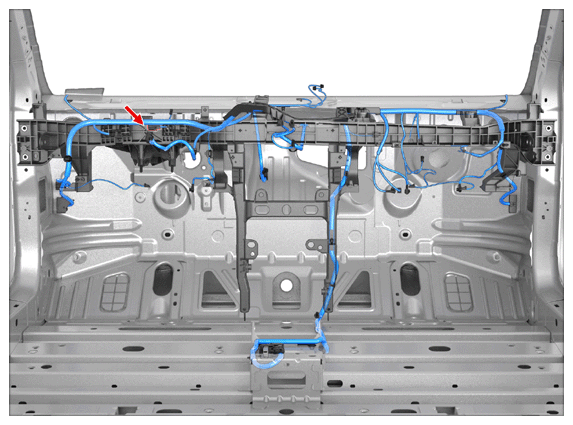

Fig 1: Connector Component Location - X990M (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X990M (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35	X055	26
2	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35	X055	2
3	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35	X055	4
4	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35	X055	20
5	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35	X055	29
6	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35
7	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35	X035	28
8	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35	X055	27
9	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35	X055	21
10	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35	X055	3
11	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35	X055	19
12	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35	X055	28
13	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35	X035	34
14	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35	X035	29
