Connector End View - X924F (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1849226-01-C

Connector KSE K20F01222

Color BK

Connector Location:

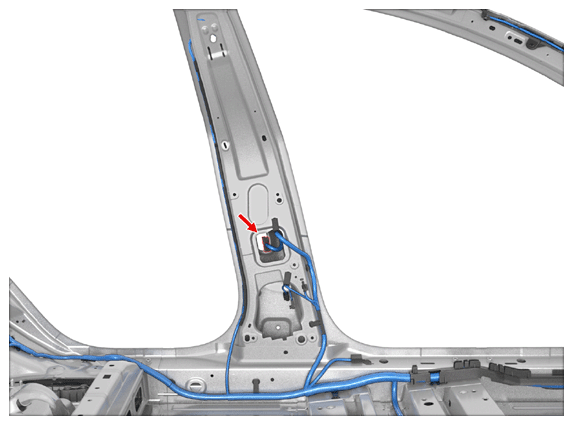

Fig 1: Connector Component Location - X924F (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	WH	1.50	X031	1
2	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35	X030A	11
3	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35	X030A	14
4	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50	X031	20
5	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35	X030A	17
6	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35	X030A	18
7	unused
8	unused
9	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35	X031	24
10	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35	X030A	8
11	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35	X030A	22
12	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35	X031	19
13	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35	X031	4
14	SUMITOMO	8240-0215	1.5x0.64F	RD	0.50	X936F	1
15	SUMITOMO	8240-0214	1.5x0.64F	GN	1.50	X031	15
16	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35	X031	23
17	unused
18	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35	X039	4
19	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35	X030A	13
20	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35	X201	44
21	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35	X201	43
22	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35	X039	31
23	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35	X030A	23
24	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35	X031	7
25	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35	X031	8
26	SUMITOMO	8240-0215	1.5x0.64F	BK	0.50	X936F	15
