Connector End View - X910M (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
Tesla Part Number 1092873-00-A
Connector AMP 1-1703532-1
Color BK

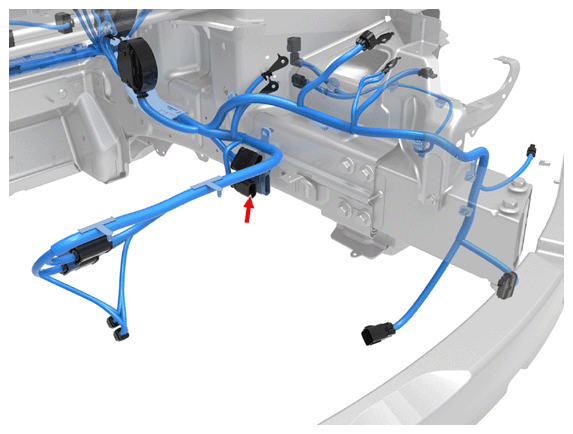

Connector Location:
Connector Pinout:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 964314-1 | 6.3x0.8MS | BU | 4.00 | AMP | 1394512-1 | X081 | 1 |
| 2 | AMP | 964314-1 | 6.3x0.8MS | BK | 4.00 | AMP | 1394512-1 | X081 | 2 |
