Connector End View - X905M (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1003238-00-B

Connector MOLEX 33482-6201

Color BK

Connector Location:

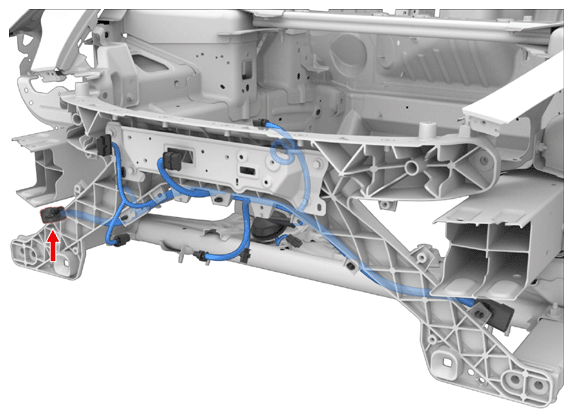

Fig 1: Connector Component Location - X905M (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X905M (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33000-0004	1.5x0.8M	BK	0.50	TESLA	MAT-120-240	X485	2
2	MOLEX	33000-0004	1.5x0.8M	TN	0.50	TESLA	MAT-120-240	X105	1
3	unused
4	unused
5	MOLEX	33000-0004	1.5x0.8M	TN	0.35	TESLA	MAT-120-240	X210	1
6	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X210	2
7	MOLEX	33000-0004	1.5x0.8M	GN	0.50	TESLA	MAT-120-240	X485	3
8	MOLEX	33000-0004	1.5x0.8M	BU	0.50	TESLA	MAT-120-240	X485	1
9	MOLEX	33000-0004	1.5x0.8M	WH	0.50	TESLA	MAT-120-240	X527	1
10	MOLEX	33000-0004	1.5x0.8M	BN	0.50	TESLA	MAT-120-240	X527	2
11	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X105	3
12	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X105	4
