Connector End View - X896 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number  1517951-01-A

Connector  ROSENBERGER 59Z143-000-B

Color  WH

Connector Location:

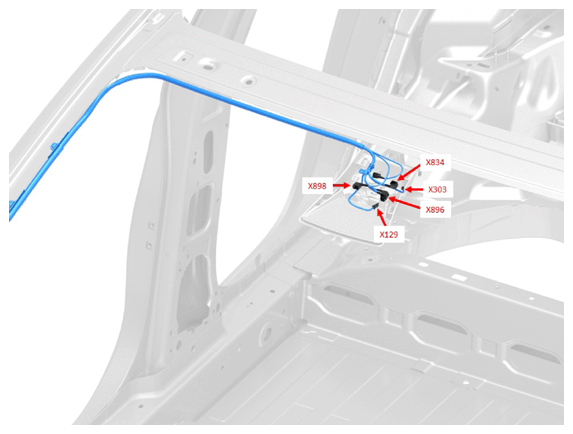

Fig 1: Connector Component Location - X896 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X896 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.
