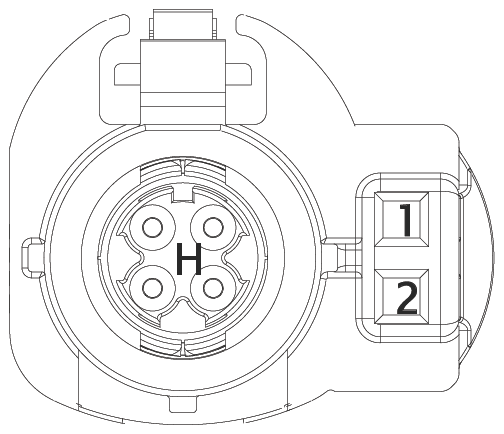

Connector End View - X876F_1 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
Tesla Part Number 1086455-03-B
Connector ROSENBERGER 99K11D-1D5A5-D
Color BO
Connector Location: Currently not available
Connector Pinout:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 5-963715-1 | 0.63x0.63F | RD | 0.50 | X858A | 1 | ||
| 2 | AMP | 5-963715-1 | 0.63x0.63F | BN | 0.50 | X858A | 2 | ||
| H | TESLA | PIA-HSD-TERM | BK | Q1020 | X858A | H |
