Connector End View - X554 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number  1106842-00-A

Connector  MOLEX 98193-0001

Color  BK

Connector Location:

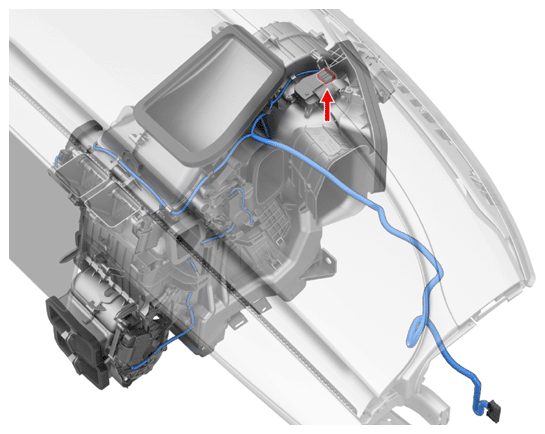

Fig 1: Connector Component Location - X554 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
G16611050Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X554 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
G16611051Courtesy of TESLA, INC.
CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 MOLEX 0986581211 0.64x0.64F BU 0.35
2 MOLEX 0986581211 0.64x0.64F GY/RD 0.35     X058 4
3 MOLEX 0986581211 0.64x0.64F RD 0.35
4 unused
5 MOLEX 0986581211 0.64x0.64F OG/YE 0.35     X058 27
6 MOLEX 0986581211 0.64x0.64F OG/WH 0.35     X058 28
