Connector End View - X501 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1768342-00-A

Connector SUMITOMO 6098-4013

Color NA

Connector Location:

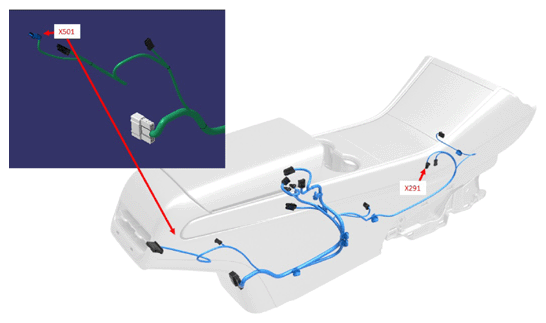

Fig 1: Connector Component Location - X501 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

G16610974

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X501 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

G16610975

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X195	1
3	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X195	2
4	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X195	3
5	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X195	4
6	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X195	6
7	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X195	5
8	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X195	10
9	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X195	9
10	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X195	8
11	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X195	7
12	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X195	11
13	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X195	12
14	unused
15	unused
16	unused
17	unused
18	unused
19	unused
20	unused
21	unused
22	unused
23	unused
24	unused
25	unused
26	unused
27	unused
28	unused
29	unused
30	unused
31	unused
32	unused
