Connector End View - X499 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
Tesla Part Number 1496689-00-A
Connector DELPHI 35126375
Color BK

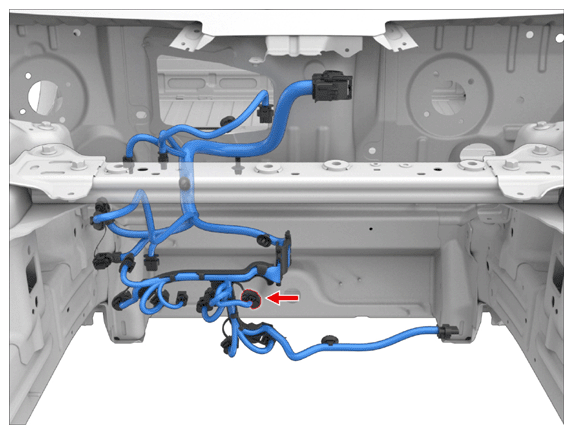

Connector Location:
Connector Pinout:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 7-1452668-3 | 1.2x0.6FS | TN | 0.50 | AMP | 967067-1 | X021 | C2 |
| 2 | AMP | 7-1452668-3 | 1.2x0.6FS | YE | 0.50 | AMP | 967067-1 | X021 | A2 |
| 3 | AMP | 7-1452668-3 | 1.2x0.6FS | BU | 0.50 | AMP | 967067-1 | X021 | D2 |
| 4 | AMP | 7-1452668-3 | 1.2x0.6FS | VT | 0.50 | AMP | 967067-1 | X021 | B2 |
