Connector End View - X497 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number  1894422-00-A

Connector  HIRSCHMANN 805-122-531

Color  BK

Connector Location:

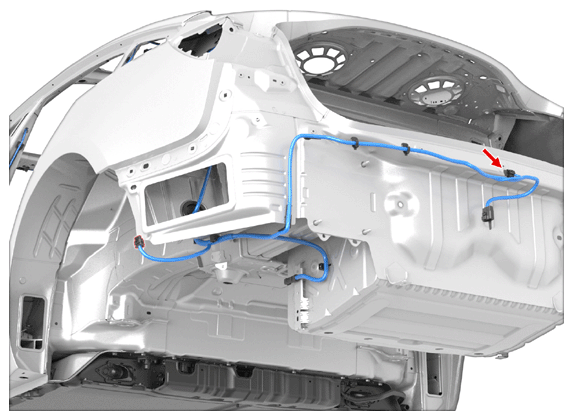

Fig 1: Connector Component Location - X497 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
G16610968Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X497 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
G16610969Courtesy of TESLA, INC.
CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 DELPHI 13959120 1.2x0.6FS WH 0.35 DELPHI 13887349 X039 24
2 DELPHI 13959120 1.2x0.6FS GY 0.35 DELPHI 13887349 X039 23
3 DELPHI 13959120 1.2x0.6FS BK 0.35 DELPHI 13887349 G041 9
4 DELPHI 13959120 1.2x0.6FS RD 0.35 DELPHI 13887349 X030A 25
