Connector End View - X484 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number  1096357-00-A

Connector  MOLEX 347910022

Color  DKGY

Connector Location:

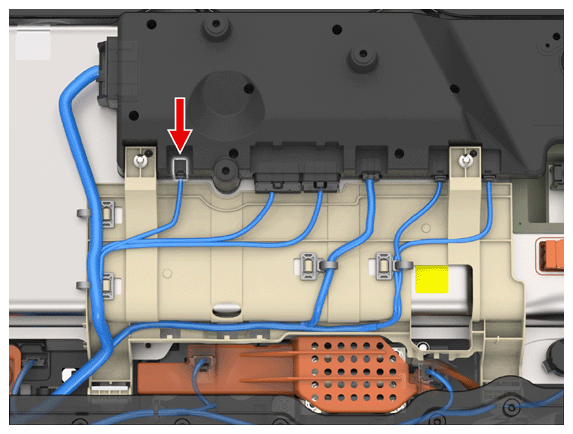

Fig 1: Connector Component Location - X484 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
G16610952Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X484 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
G16610953Courtesy of TESLA, INC.
CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 MOLEX 560023-0448 0.50x0.4F WH 0.35     X470 1
2 MOLEX 560023-0448 0.50x0.4F BN 0.35     X470 2
