Connector End View - X481 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number  1115404-00-A

Connector  AMP 174465-1

Color  BK

Connector Location:

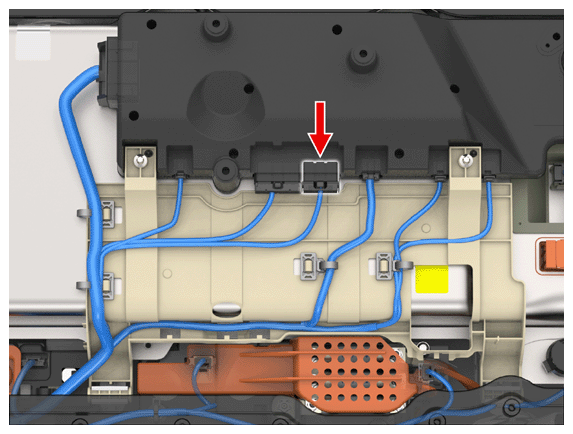

Fig 1: Connector Component Location - X481 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X481 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.
