Connector End View - X457 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
Tesla Part Number 1117401-00-A
Connector HIRSCHMANN 805-031-585
Color BK

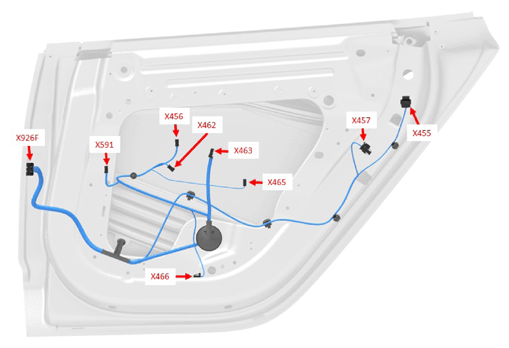

Connector Location:

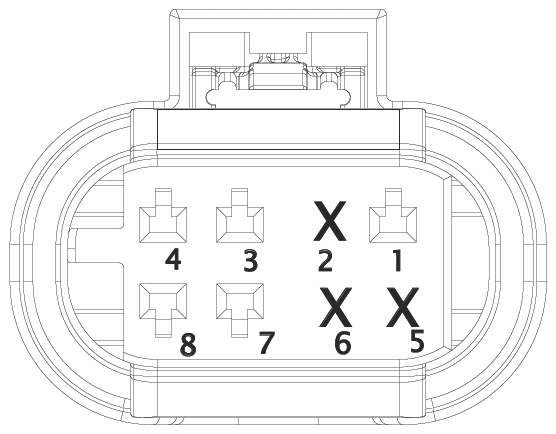

Connector Pinout:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 7-1452665-1 | 1.2x0.6FS | VT | 0.35 | AMP | 967067-2 | X926M | 19 |
| 2 | unused | ||||||||
| 3 | AMP | 7-1452665-1 | 1.2x0.6FS | GY | 0.35 | AMP | 967067-2 | X926M | 13 |
| 4 | AMP | 7-1452665-1 | 1.2x0.6FS | WH | 0.35 | AMP | 967067-2 | X926M | 12 |
| 5 | unused | ||||||||
| 6 | unused | ||||||||
| 7 | AMP | 7-1452665-1 | 1.2x0.6FS | BN | 0.35 | AMP | 967067-2 | ||
| 8 | AMP | 7-1452665-1 | 1.2x0.6FS | YE | 0.35 | AMP | 967067-2 | X926M | 18 |
