Connector End View - X320 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1064878-00-A

Connector DELPHI 13678638

Color BK

Connector Location:

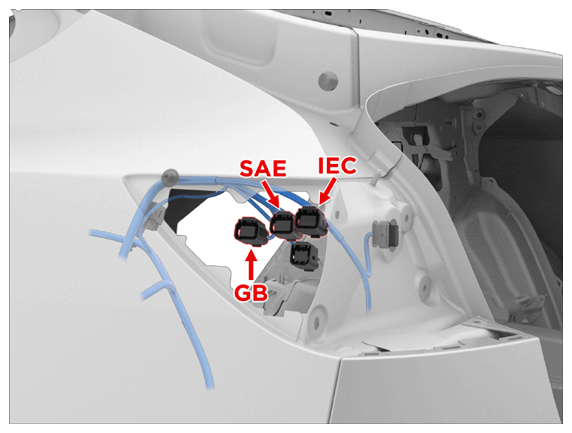

Fig 1: Connector Component Location - X320 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X320 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35072403	1.2x0.6F	YE	0.50	TESLA	MAT-140-190	X688	4
2	DELPHI	35072403	1.2x0.6F	RD	0.50	TESLA	MAT-140-190	X688	1
3	unused
4	DELPHI	35072403	1.2x0.6F	YE	0.50	TESLA	MAT-140-190	X688	20
5	unused
6	unused
7	unused
8	DELPHI	35072403	1.2x0.6F	BU	0.50	TESLA	MAT-140-190	X688	13
9	DELPHI	35072403	1.2x0.6F	VT	0.50	TESLA	MAT-140-190	X688	22
10	DELPHI	35072403	1.2x0.6F	BN	0.50	TESLA	MAT-140-190	X688	21
11	DELPHI	35072403	1.2x0.6F	GN	0.50	TESLA	MAT-140-190	X688	5
12	DELPHI	35072403	1.2x0.6F	WH	0.50	TESLA	MAT-140-190	X688	16
