Connector End View - X301 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1096619-00-A

Connector FEP 42121100

Color BK

Connector Location:

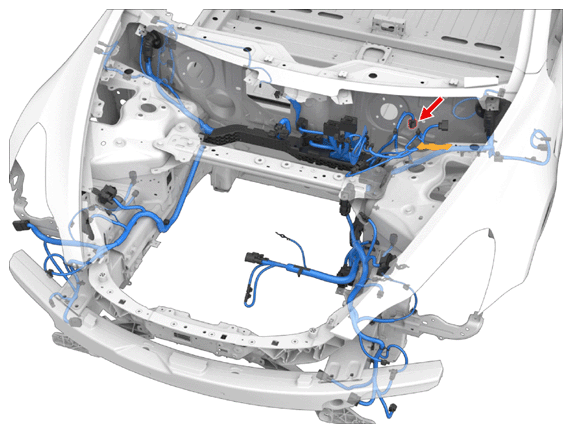

Fig 1: Connector Component Location - X301 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X301 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	964286-1	2.8x0.8FS	BK	0.75	AMP	963294-1	G011	11
2	AMP	964286-1	2.8x0.8FS	BU	0.75	AMP	963294-1	X010	80
