Connector End View - X294 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1895711-00-A

Connector ALPS SPVQ115100

Color BK

Connector Location:

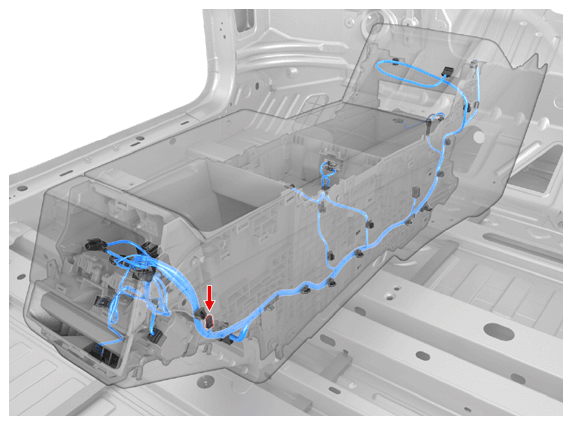

Fig 1: Connector Component Location - X294 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X294 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	GEN	PIA-PIGTAIL	PIGTAIL	YE	0.3f	X196	15
3	GEN	PIA-PIGTAIL	PIGTAIL	BK	0.3f	X292	1
