Connector End View - X265 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
Tesla Part Number 1506109-00-A
Connector DELPHI 13890301
Color BK

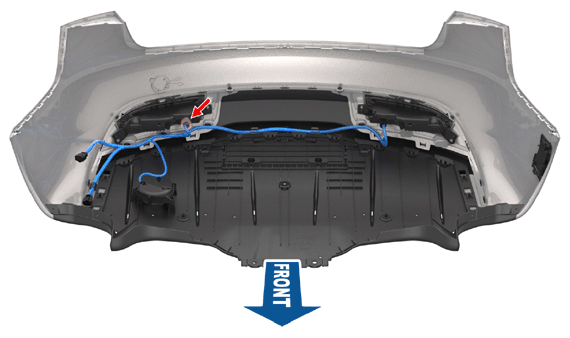

Connector Location:
Connector Pinout:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 35410019 | 1.2x0.6F | BU | 0.35 | TESLA | MAT-120-190 | X949F | 10 |
| 2 | DELPHI | 35410019 | 1.2x0.6F | GY | 0.35 | TESLA | MAT-120-190 | X949F | 5 |
| 3 | DELPHI | 35410019 | 1.2x0.6F | RD | 0.35 | TESLA | MAT-120-190 | X949F | 9 |
| 4 | DELPHI | 35410019 | 1.2x0.6F | VT | 0.35 | TESLA | MAT-120-190 | X264 | 5 |
| 5 | DELPHI | 35410019 | 1.2x0.6F | TN | 0.35 | TESLA | MAT-120-190 | X264 | 1 |
| 6 | DELPHI | 35410019 | 1.2x0.6F | YE | 0.35 | TESLA | MAT-120-190 | X949F | 4 |
| 7 | DELPHI | 35410019 | 1.2x0.6F | WH | 0.35 | TESLA | MAT-120-190 | X264 | 6 |
| 8 | DELPHI | 35072403 | 1.2x0.6F | BK | 0.50 | TESLA | MAT-120-190 | X949F | 11 |
