Connector End View - X245 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1552449-01-B

Connector JAE MX72B002SR2-1

Color LG

Connector Location:

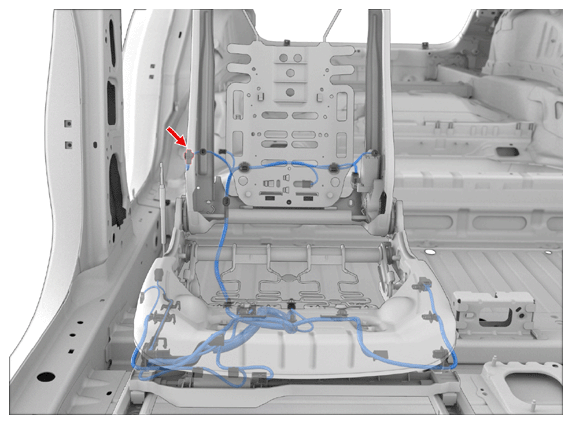

Fig 1: Connector Component Location - X245 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

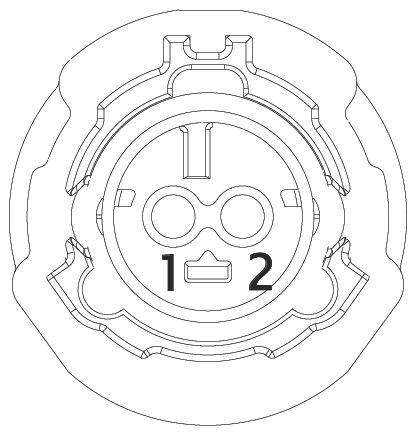

Fig 2: Connector End View - X245 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	PIA	TERM-AU	PIA-F	VT/TN	0.35			X052	1
2	PIA	TERM-AU	PIA-F	GY/GN	0.35			X052	2
