Connector End View - X231 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number  1610784-00-B

Connector  DELPHI 35372151

Color  BK

Connector Location:

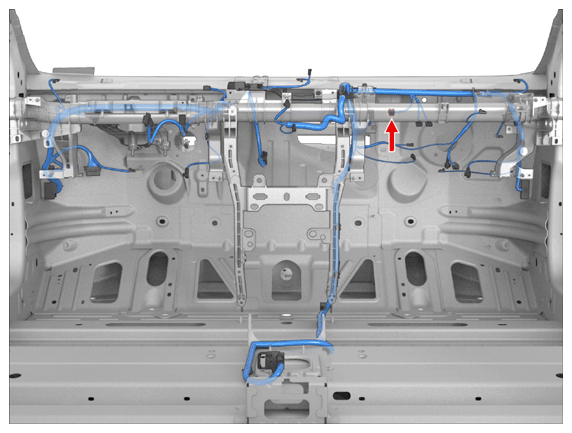

Fig 1: Connector Component Location - X231 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
G16610704Courtesy of TESLA, INC.

Connector Pinout:

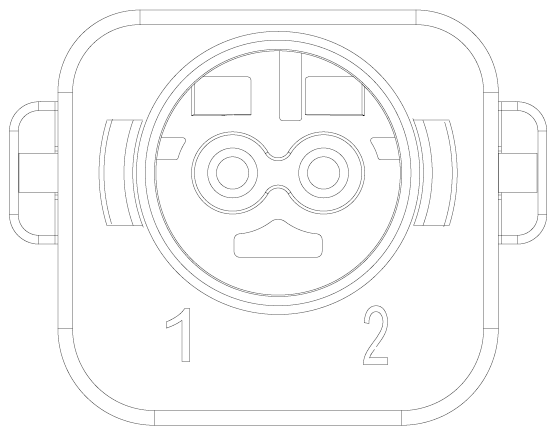

Fig 2: Connector End View - X231 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
G16610705Courtesy of TESLA, INC.
CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 GEN PIA-SRS-S   BK 0.35     X200 5
2 GEN PIA-SRS-S   RD 0.35     X200 6
