Connector End View - X217 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number  1493986-01-B

Connector  DELPHI 35263937

Color  VT

Connector Location:

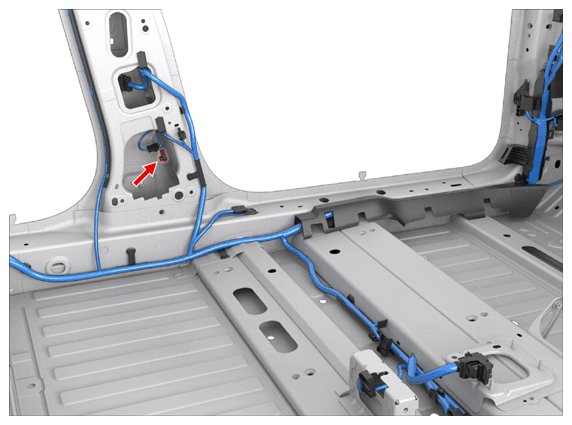

Fig 1: Connector Component Location - X217 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
G16610683Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X217 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
G16610684Courtesy of TESLA, INC.
CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 GEN PIA-SRS-S   RD 0.35     X201 4
2 GEN PIA-SRS-S   YE 0.35     X201 3
