Connector End View - X207 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number  1496687-02-A

Connector  DELPHI 35126366

Color  BU

Connector Location:

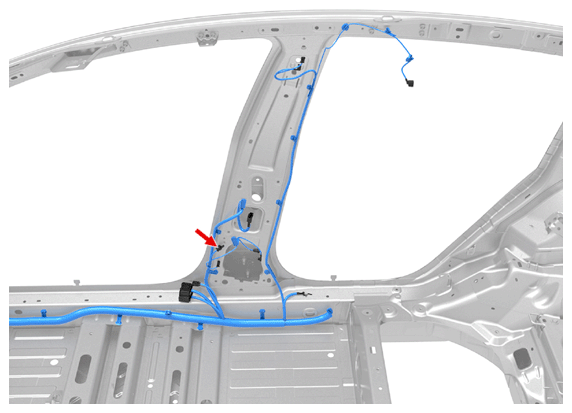

Fig 1: Connector Component Location - X207 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
G16610671Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X207 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
G16610672Courtesy of TESLA, INC.
CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 DELPHI 13959118 1.2x0.6FS BN 0.35 DELPHI 13887349 X935M 12
2 DELPHI 13959118 1.2x0.6FS VT 0.35 DELPHI 13887349 X935M 11
