Connector End View - X179 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1849225-03-B

Connector KSE K30M31014

Color GY

Connector Location:

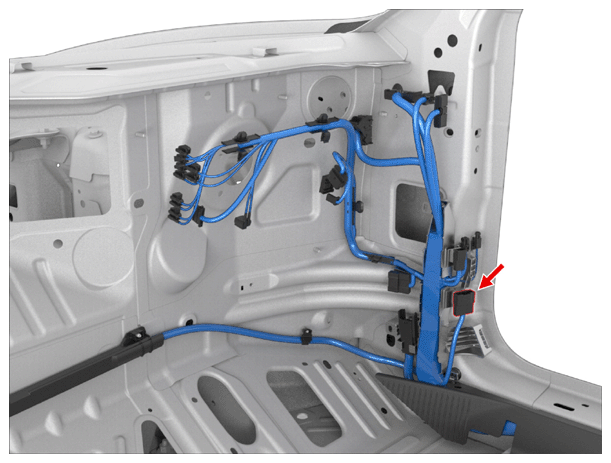

Fig 1: Connector Component Location - X179 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

G16610605

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X179 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

G16610606

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	SUMITOMO	8100-3623	0.64x0.64M	YE/LTBU	0.35			X051	13
3	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X051	29
4	unused
5	unused
6	unused
7	unused
8	unused
9	SUMITOMO	8100-3623	0.64x0.64M	BN/WH	0.35			X050	56
10	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X050	55
11	unused
12	unused
13	SUMITOMO	8100-3623	0.64x0.64M	DKGN/WH	0.35			X908M	13
14	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X908M	14
15	unused
16	unused
17	unused
18	unused
19	unused
20	SUMITOMO	8230-4925	1.5x0.6M	BK	0.50			G032	8
