Connector End View - X176 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number  1660464-00-A

Connector  HIROSE GT25-8DS-HU

Color  BK

Connector Location:

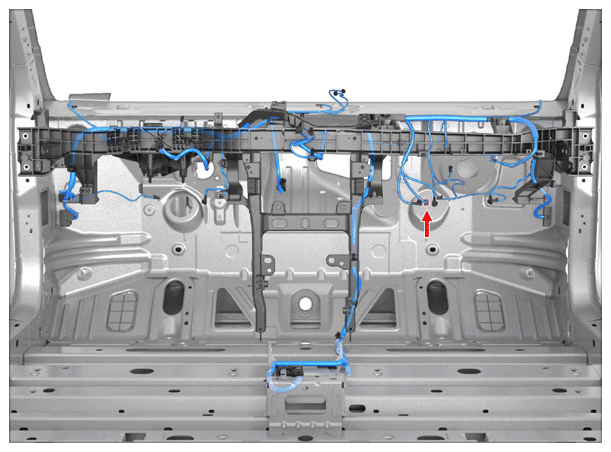

Fig 1: Connector Component Location - X176 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
G16610601Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X176 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
G16610602Courtesy of TESLA, INC.
CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 HIROSE GT25H-2024SCF 0.64F YE 0.35     X189 4
2 HIROSE GT25H-2024SCF 0.64F GY 0.35     X189 3
3 HIROSE GT25H-2024SCF 0.64F VT 0.35     X189 2
4 HIROSE GT25H-2024SCF 0.64F BU 0.35     X189 1
5 HIROSE GT25H-2024SCF 0.64F GN 0.35     X189 8
6 HIROSE GT25H-2024SCF 0.64F BN 0.35     X189 7
7 HIROSE GT25H-2024SCF 0.64F YE 0.35     X189 6
8 HIROSE GT25H-2024SCF 0.64F WH 0.35     X189 5
